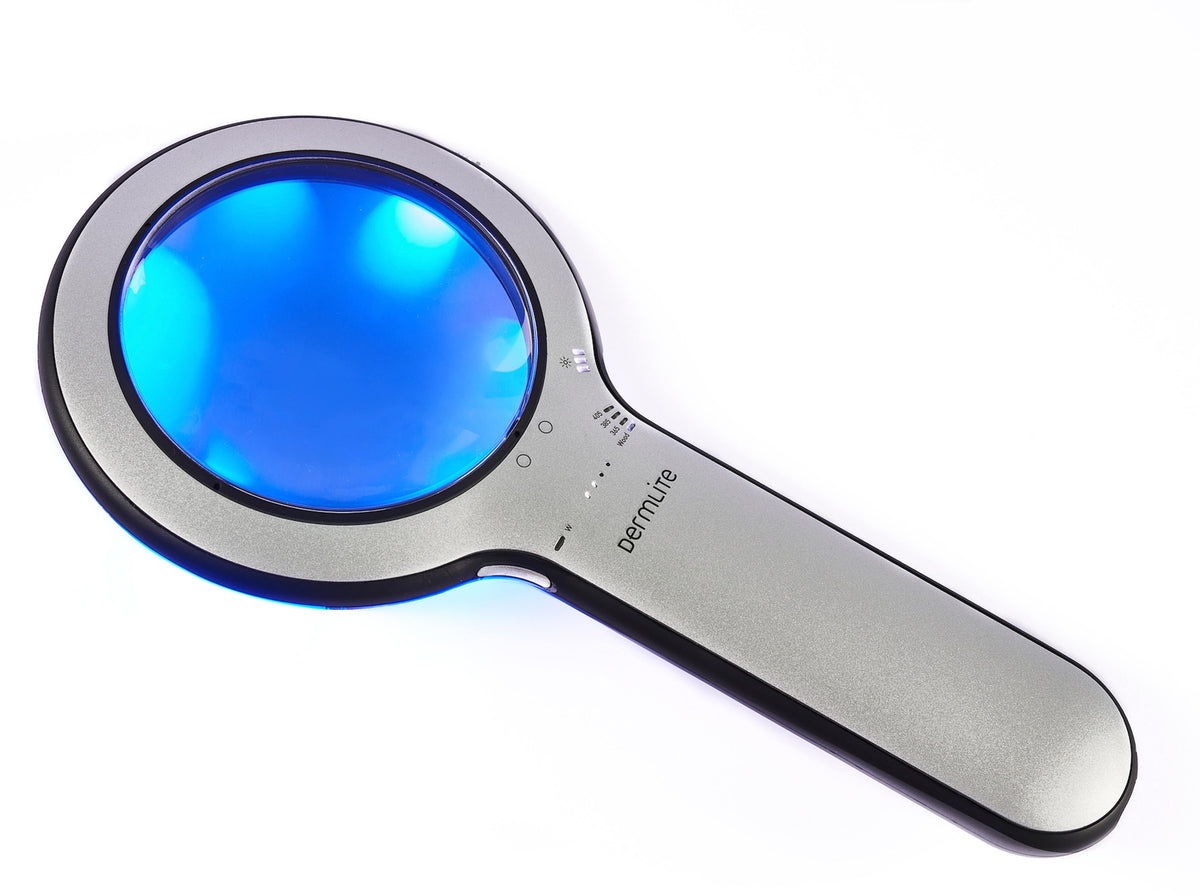

DermLite Lumio® 2
Directions for use
DermLite Lumio 2 Guide
Huge viewing area

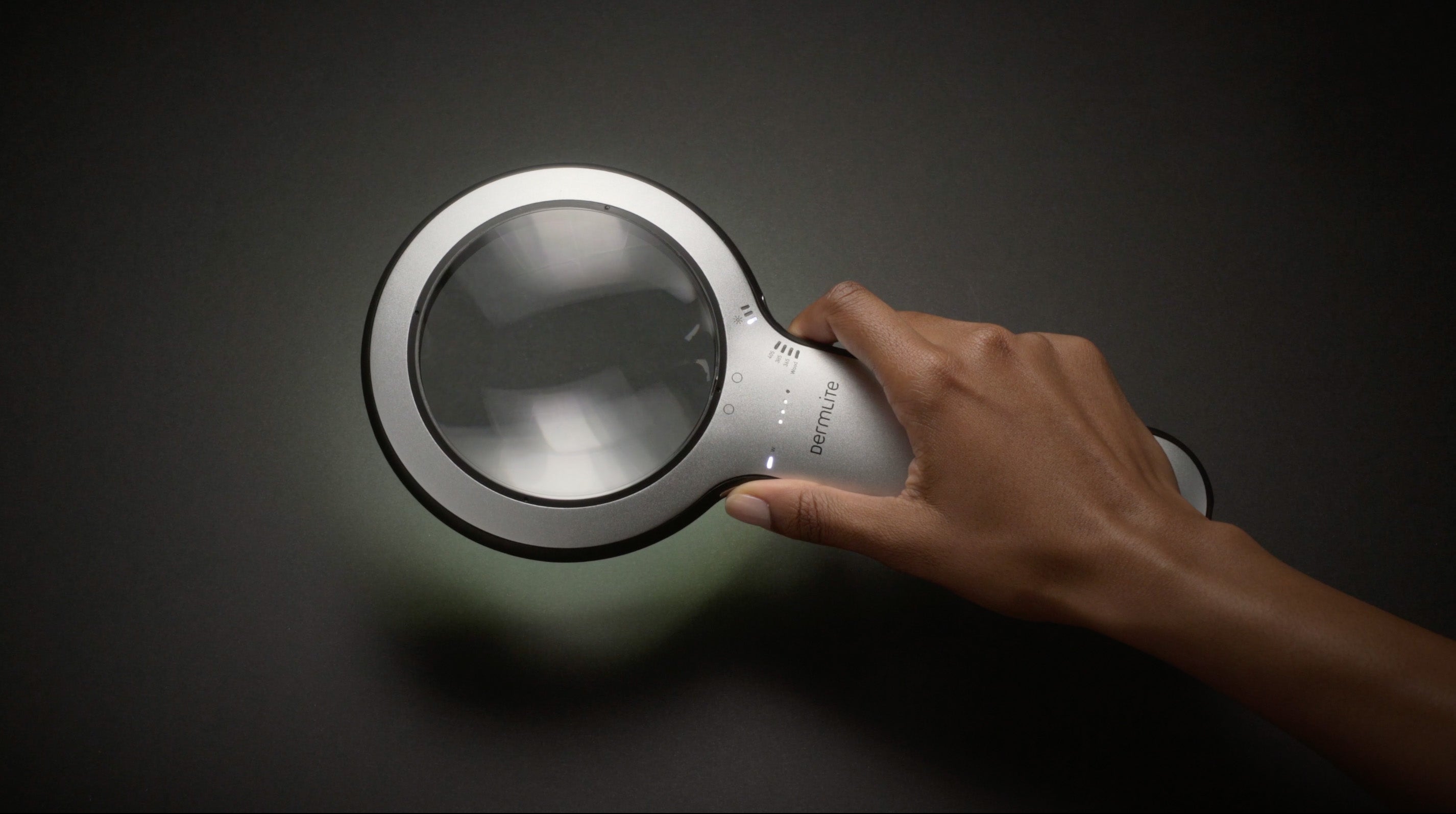

Its large, 100mm diameter aspheric lens with 2.3x magnification allows for unrivalled visualisation of dermatological structures in excellent optical clarity.
Multiple light modes

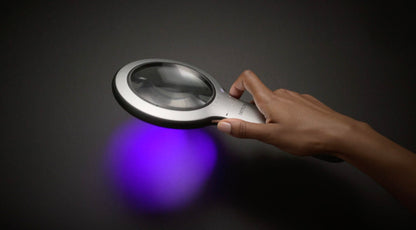

Choose from polarised white light or one of three specific wavelengths: 365nm, 385nm in the UV spectrum, or 405nm blue light. Or, select its Wood mode, a special blend custom-tailored to resemble the unique illumination of a Wood’s lamp which may help with evaluating the borders and extent of lentigo maligna as well as melanoma excision scars for signs of recurrence, among others. All five modes are available in three brightness levels.
Enhanced magnification
Lumio 2 comes with two magnetic OptiClip™ accessories. While one can be placed in the field of view to aid visualisation, the other OptiClip may be stored in the handle.
- OptiClip 405nm Long-Pass – ideal for enhancing contrast of fluorescent features
- OptiClip 2.5x – boosts magnification by a factor of 2.5.
Quality battery design
Lumio 2 integrates a powerful lithium-ion rechargeable battery designed to let you work for hours. Once its four-level charge indicator signals a low battery, recharging is fast and simple from any available USB outlet using the included USB-C to USB cable.
Model No. DLU2 is supplied with one Lumio 2, OptiClip 405nm Long-Pass, OptiClip 2.5x, and one protective neoprene pouch.
Snapshot
- 100mm 2x lens
- Ultra-bright white LEDs
- Five lighting modes: white, 365nm, 385nm, 405nm, Wood
- Three brightness levels
- Lithium-ion rechargeable battery
- Ultra-slim aluminium design with rubberised grip
- 4-level battery indicator
- OptiClip filter for enhanced fluorescence imaging
- OptiClip factor 2.5 magnification boost
- Protective neoprene pouch
