Features & Benefits

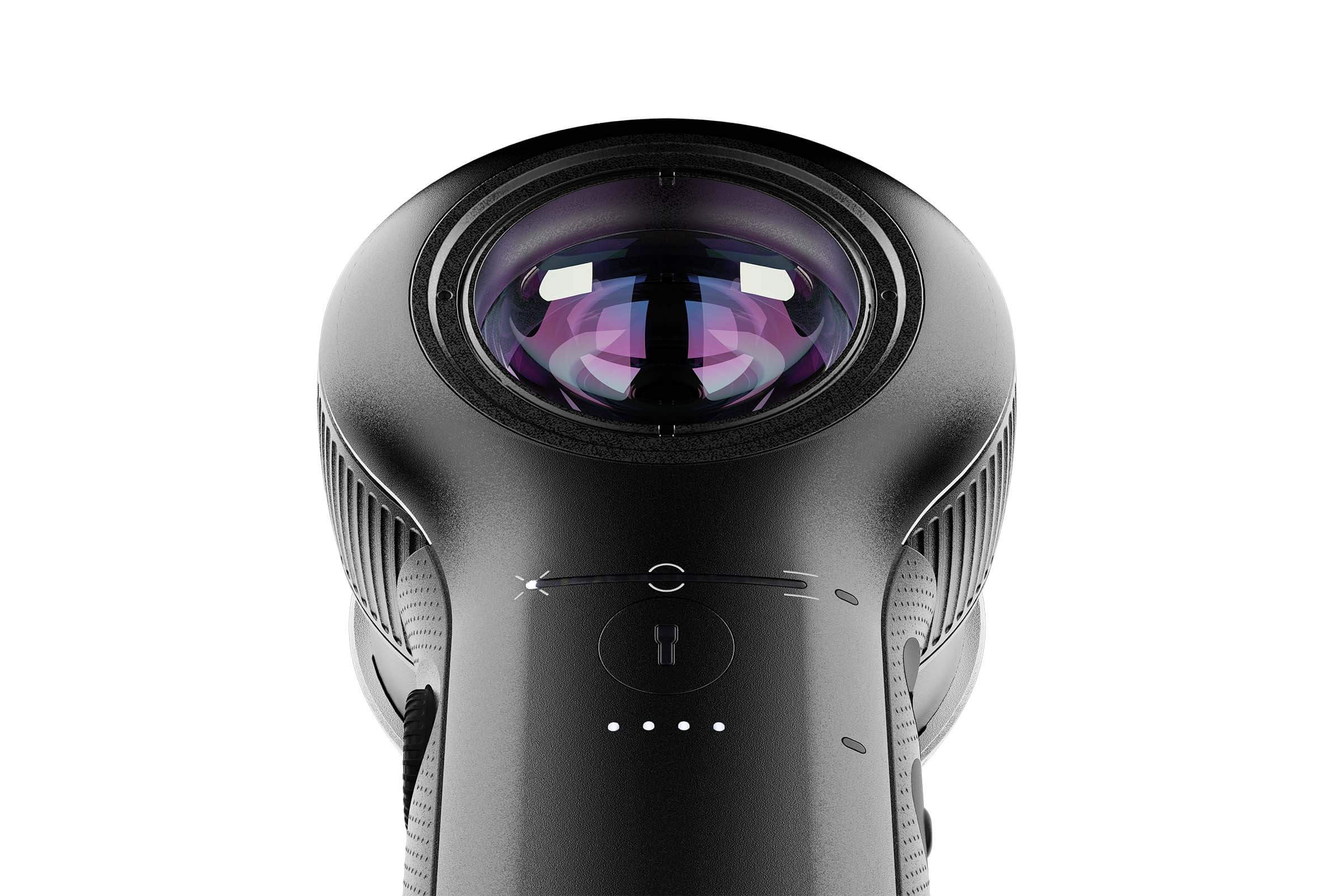

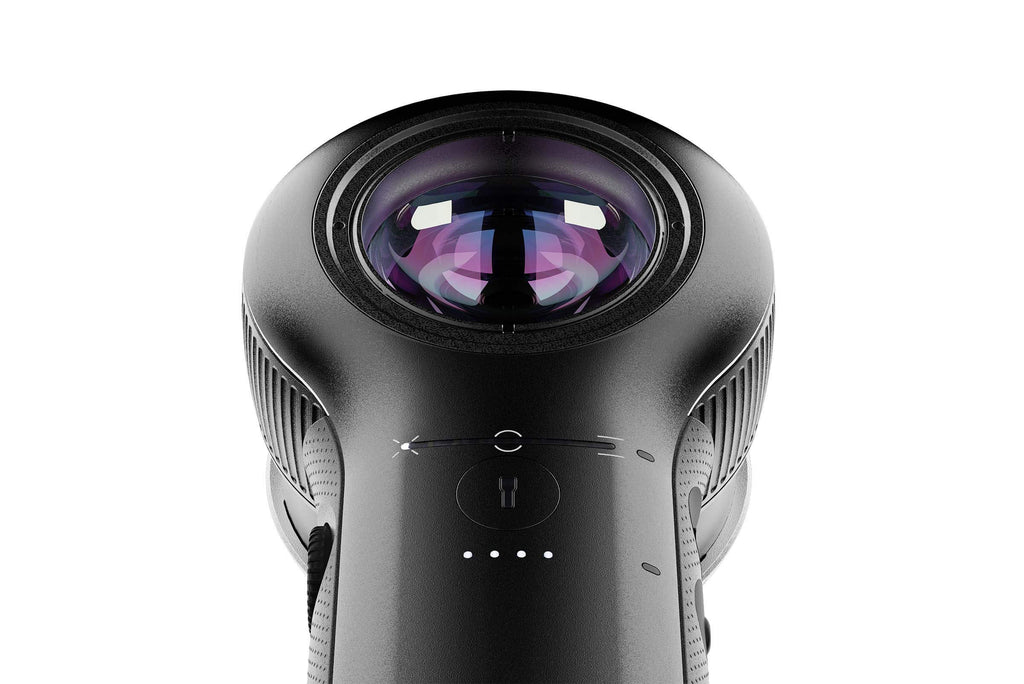

ø32mm lens design with superb performance up-close and at distance true 10x magnification — resolves even finer structures.

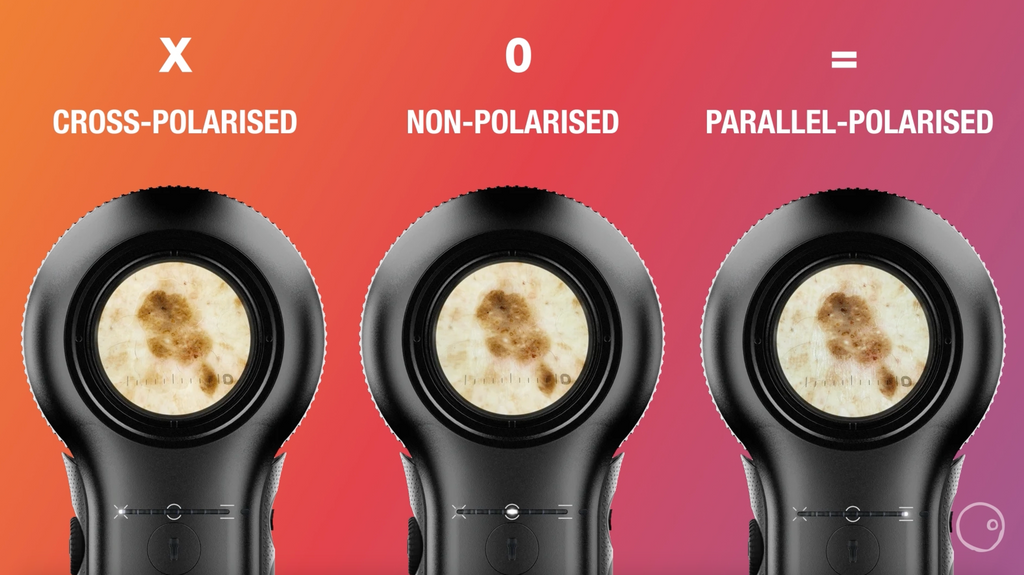

Toggle between DermLite-quality cross-polarised and non-polarised illumination visually highlight skin layers by scrolling through the entire polarisation range, from deep-penetrating cross-polarisation to extremely superficial parallel polarisation.
Ultra-bright white LEDs with signature DermLite spectrum for optimised visualisation of both pigmented and vascular structures.

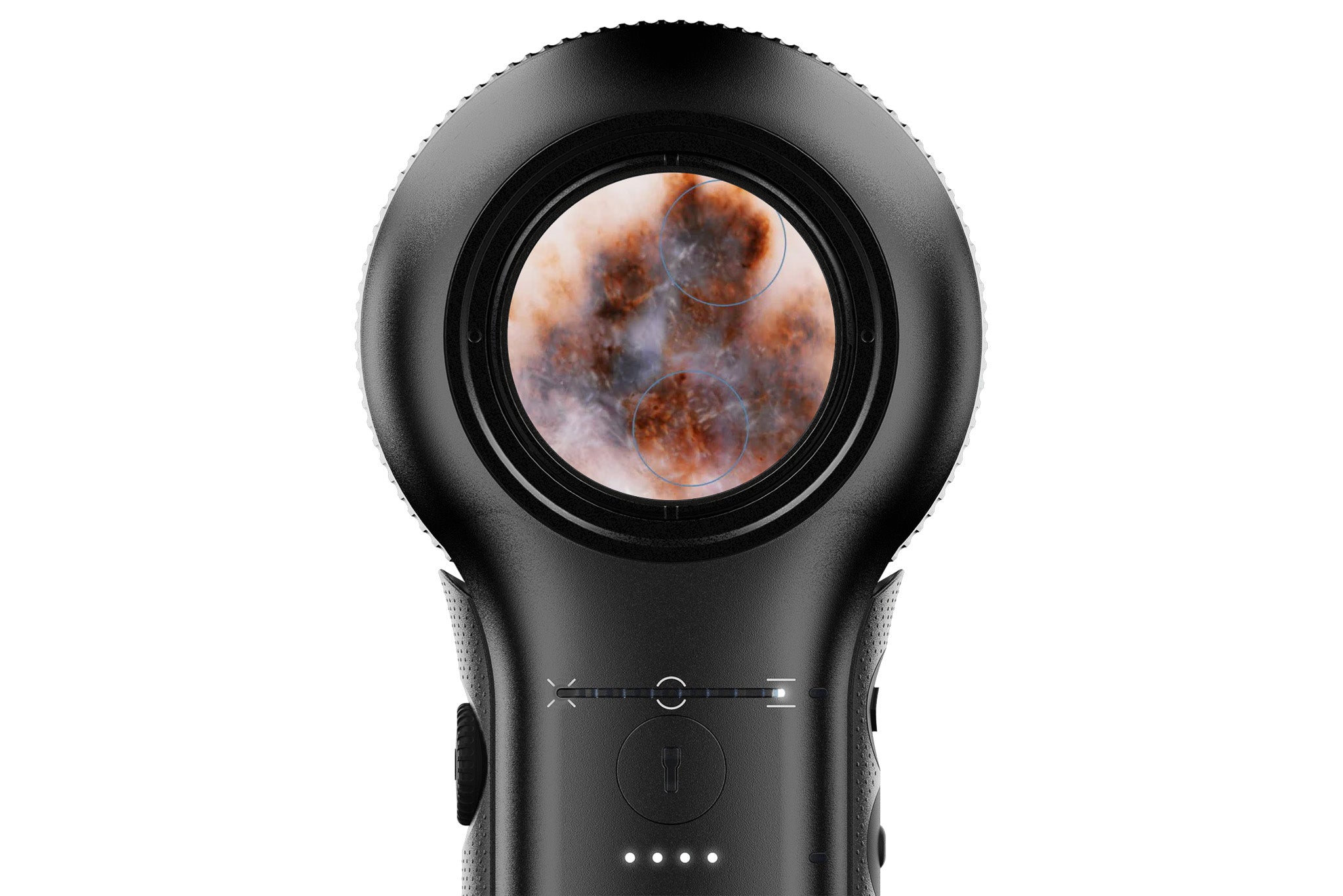

365nm UV mode & PigmentBoost® for visualising pigmented lesions.
Torch mode: Ultra-bright flashlight LED for illuminating skin surfaces or body cavities from a distance.
9 levels of brightness control in all modes.

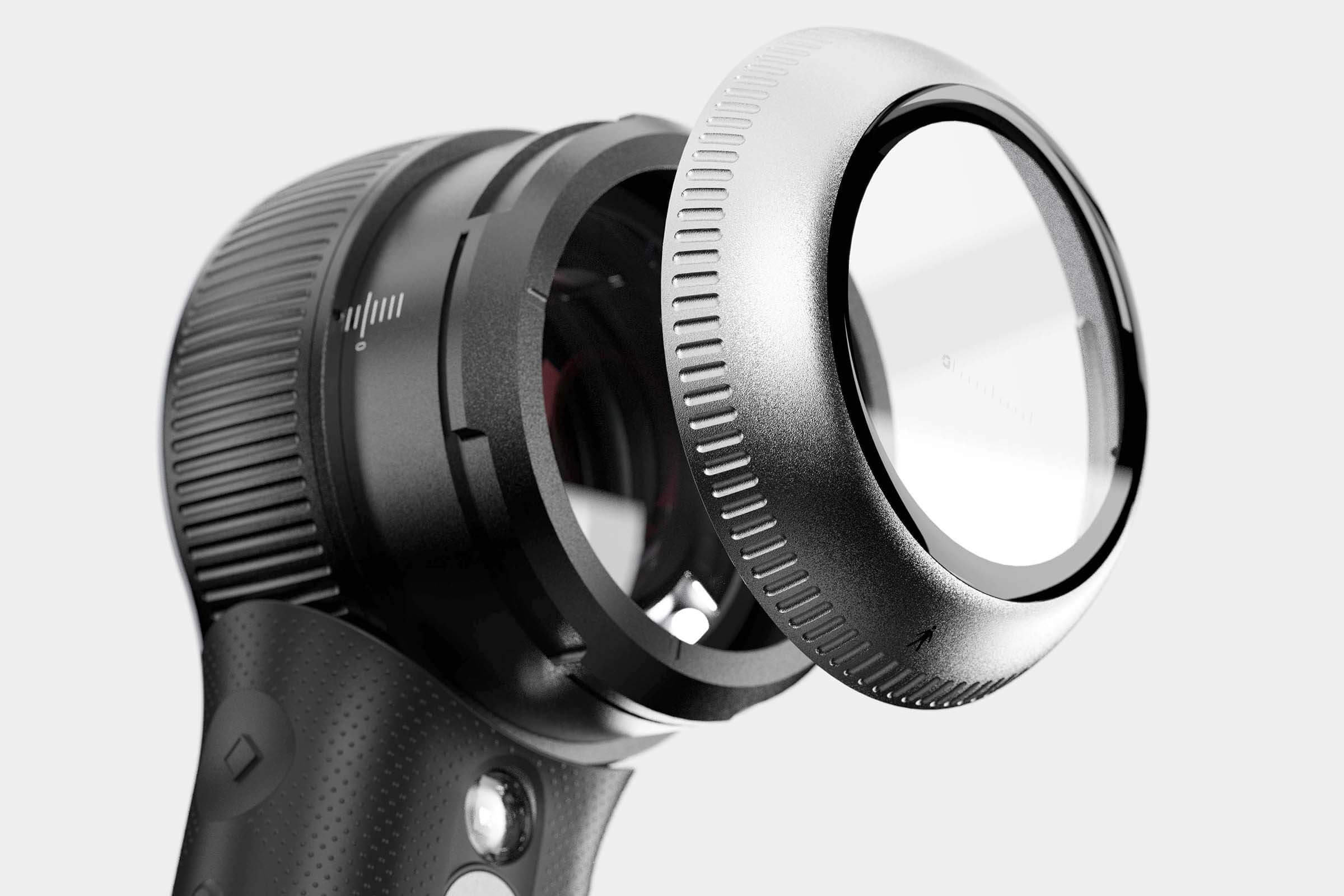

Removable glass contact plate with 10mm reticle (reliable bayonet style) compatible with small-area contact plate (sold separately) for hard-to-reach areas.
Includes disposable IceCap® to help reduce cross-contamination.

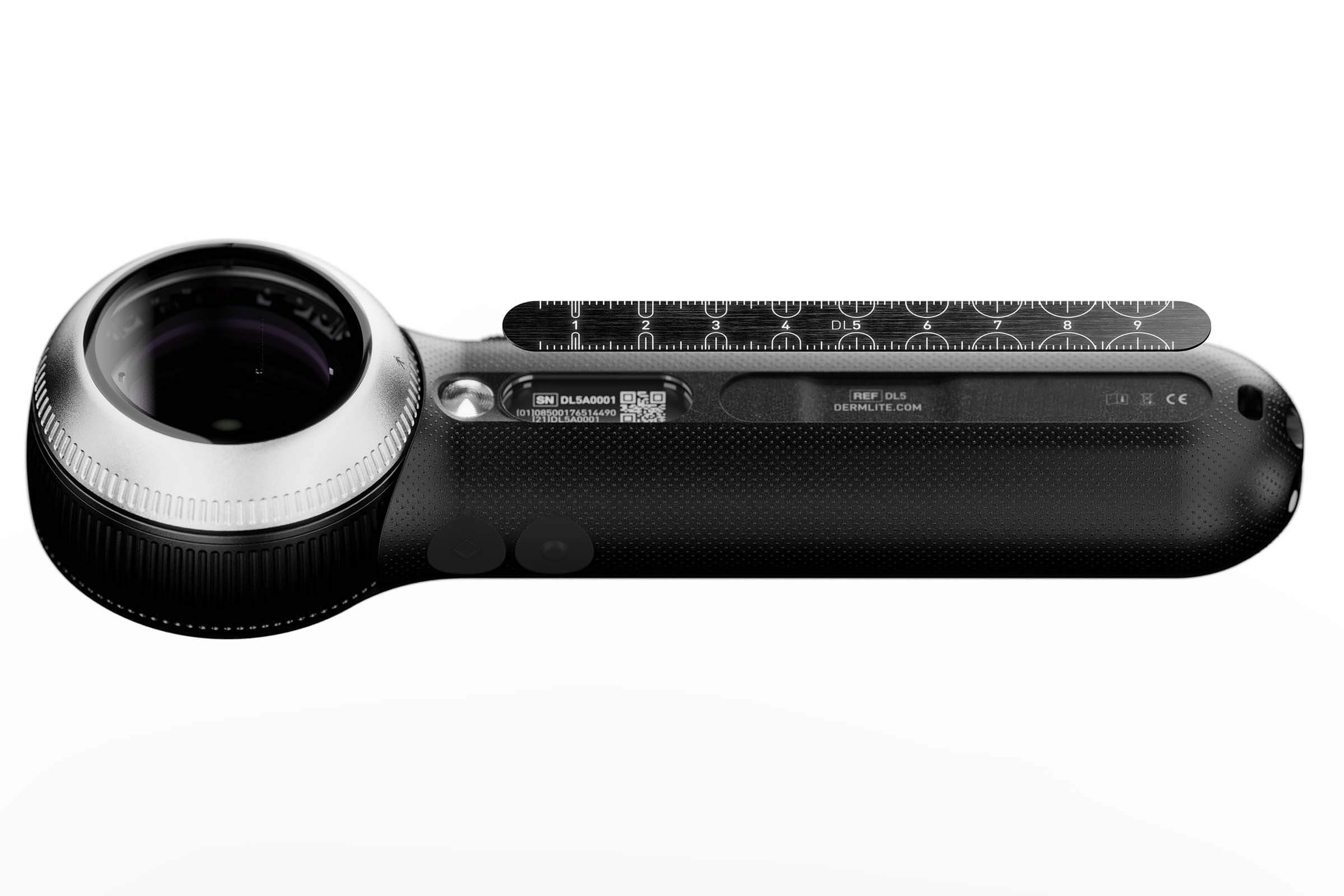

Includes magnetically attached 100mm ruler optimised for measuring lesions.

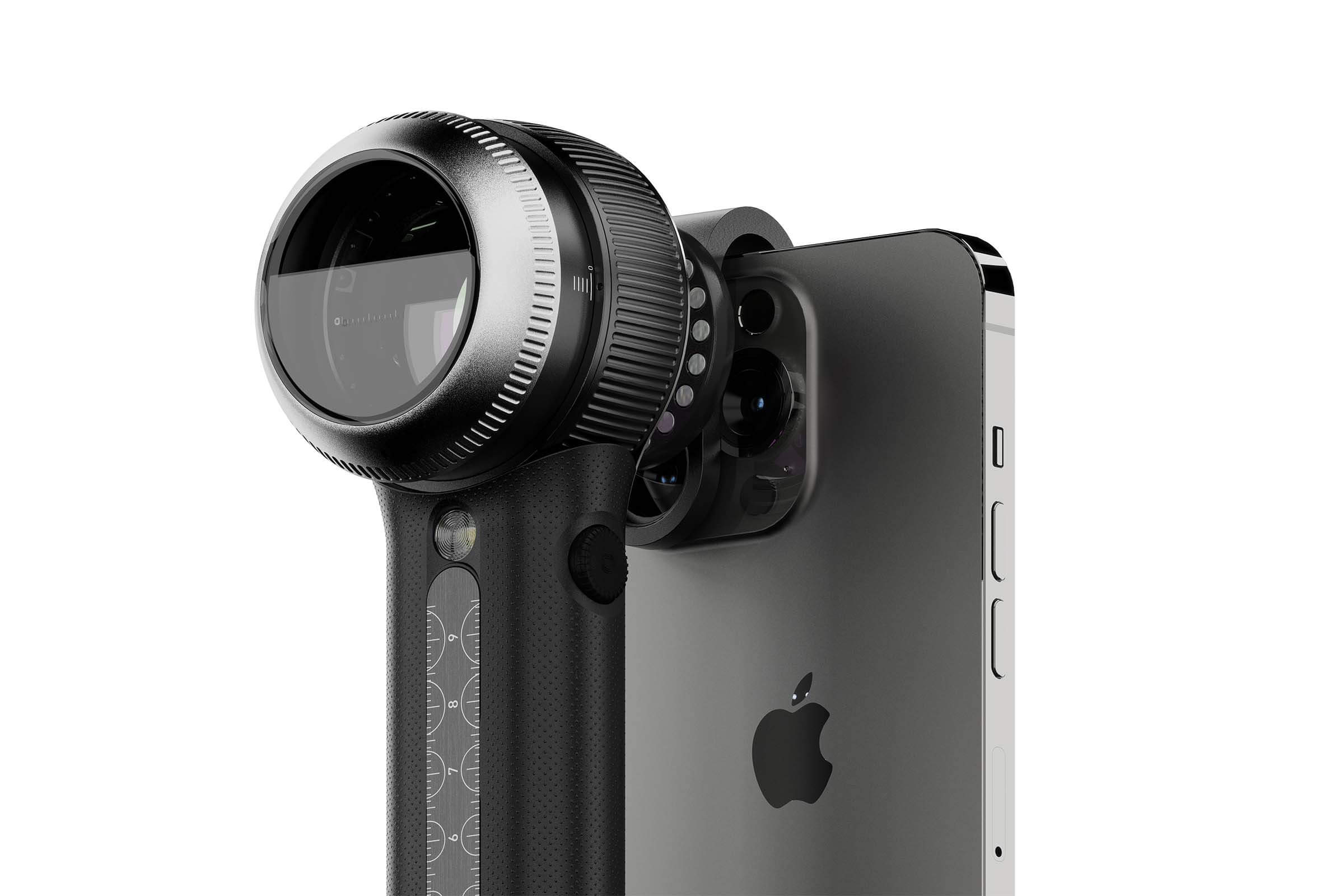

Works with virtually any smartphone out of the box via included MCC adapter.
3000mAh lithium-ion battery lasts twice as long as previous devices.
Four-level charge indicator; device sleeps after 3 minutes of inactivity.

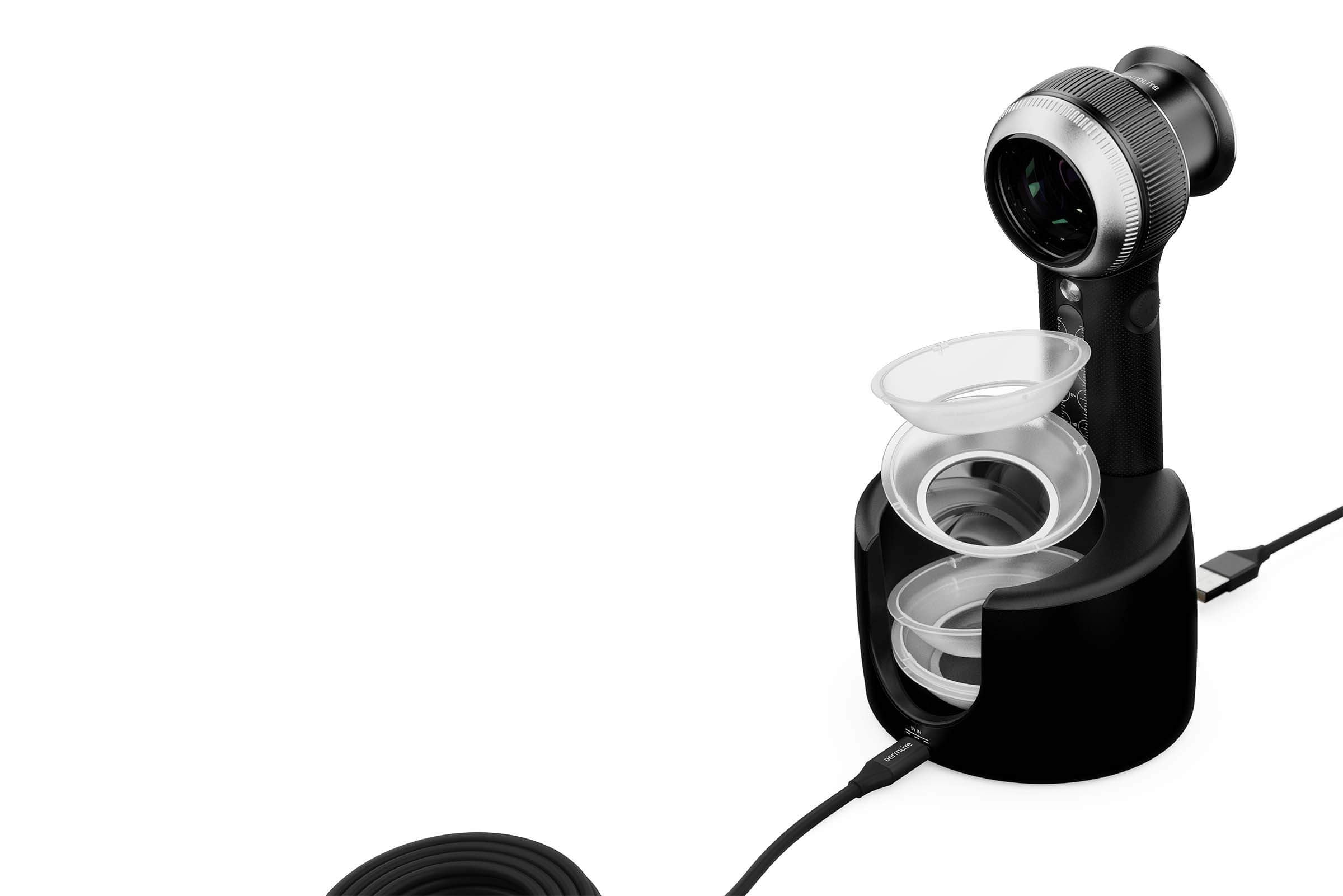

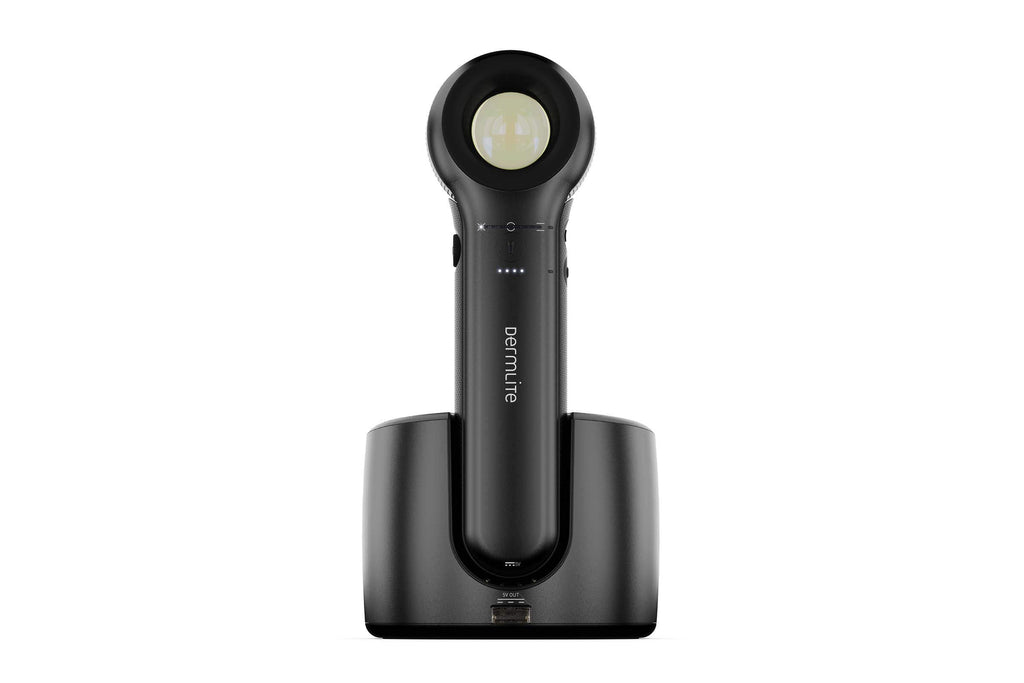

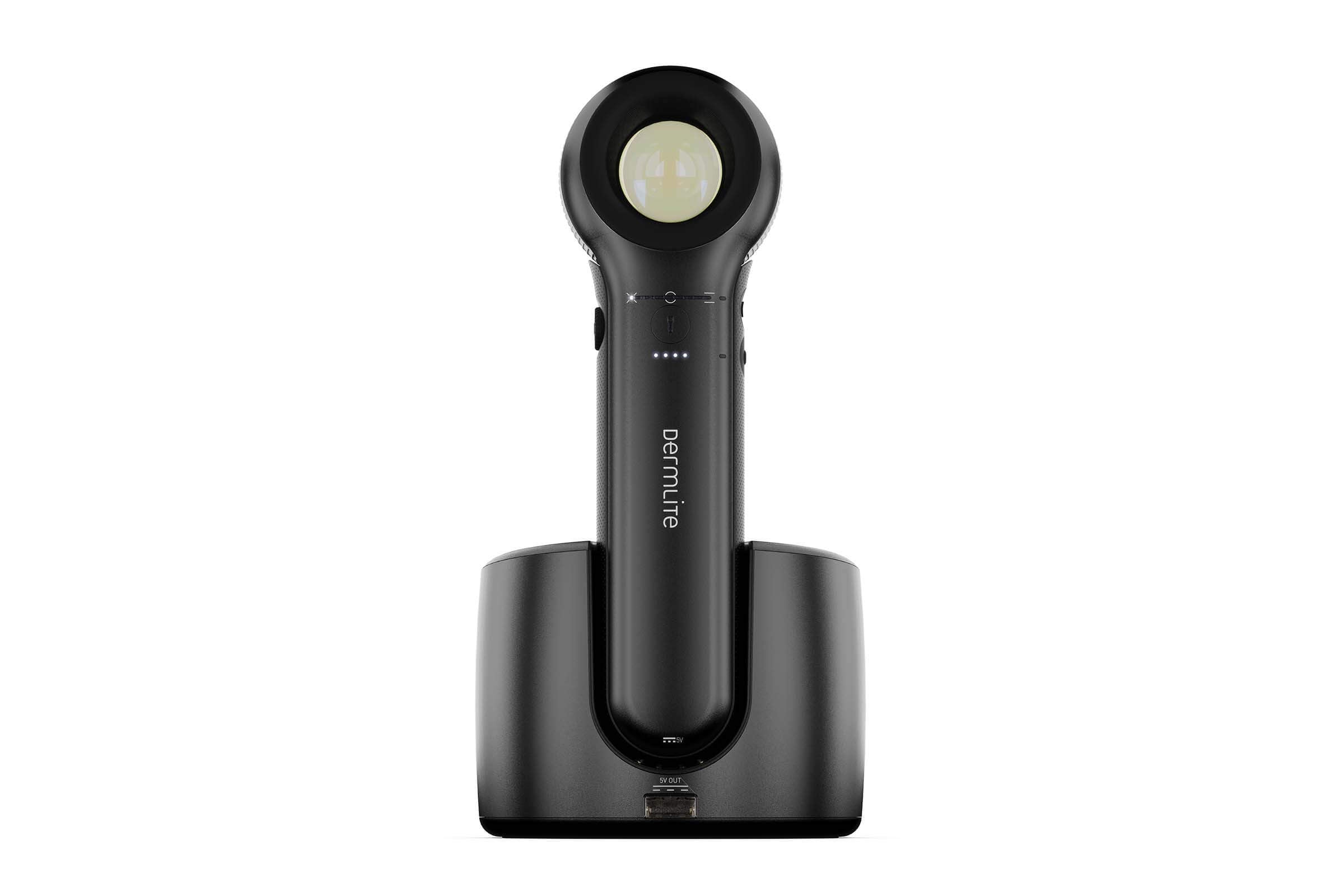

Charge on included desktop charging base or via USB-C.
Charging base includes USB output for charging a second device and stores IceCap.

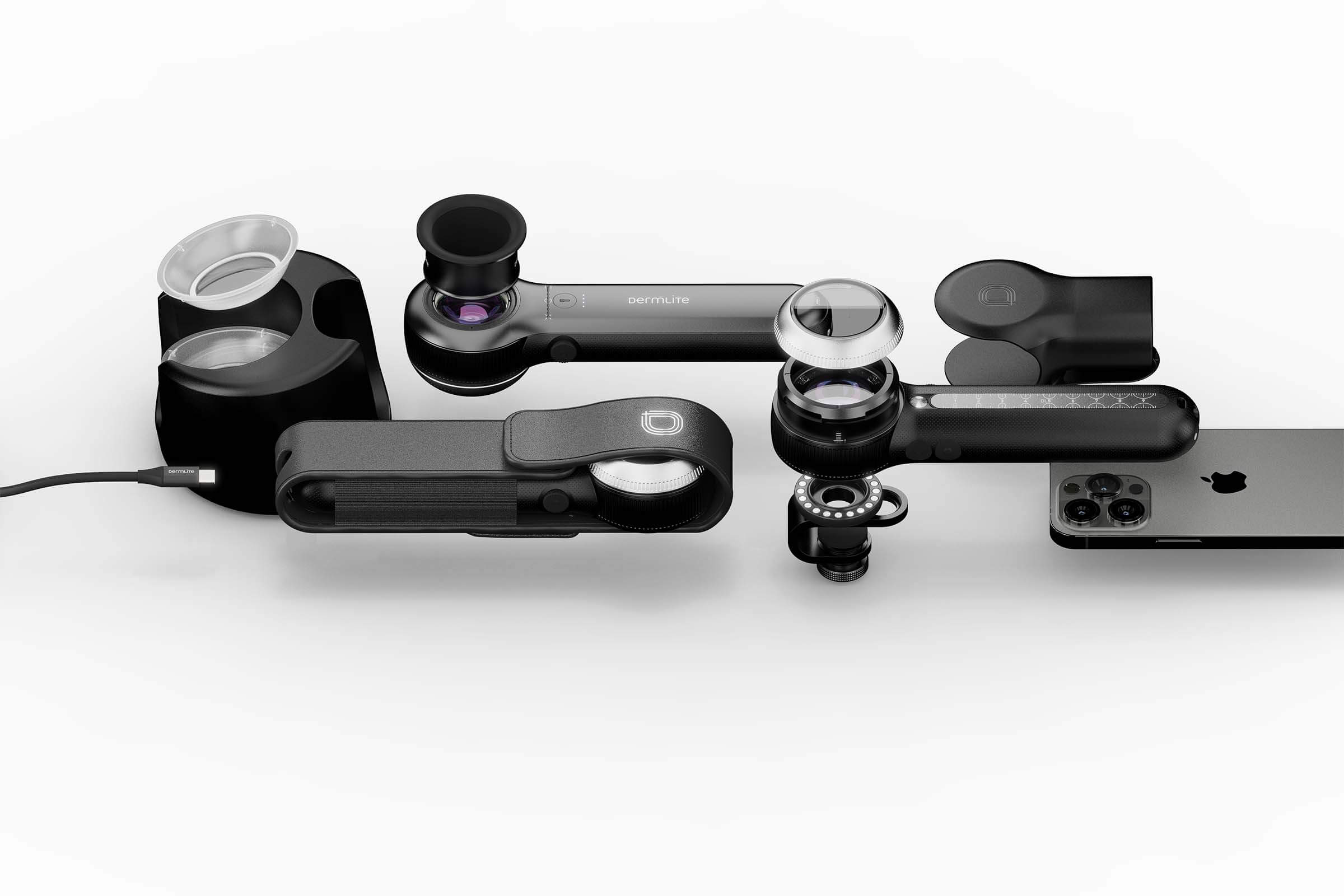

What's in the box?
Desktop Charging Base
MCC Smartphone Adapter
10mm Steel Ruler
Infection Control (icecaps)

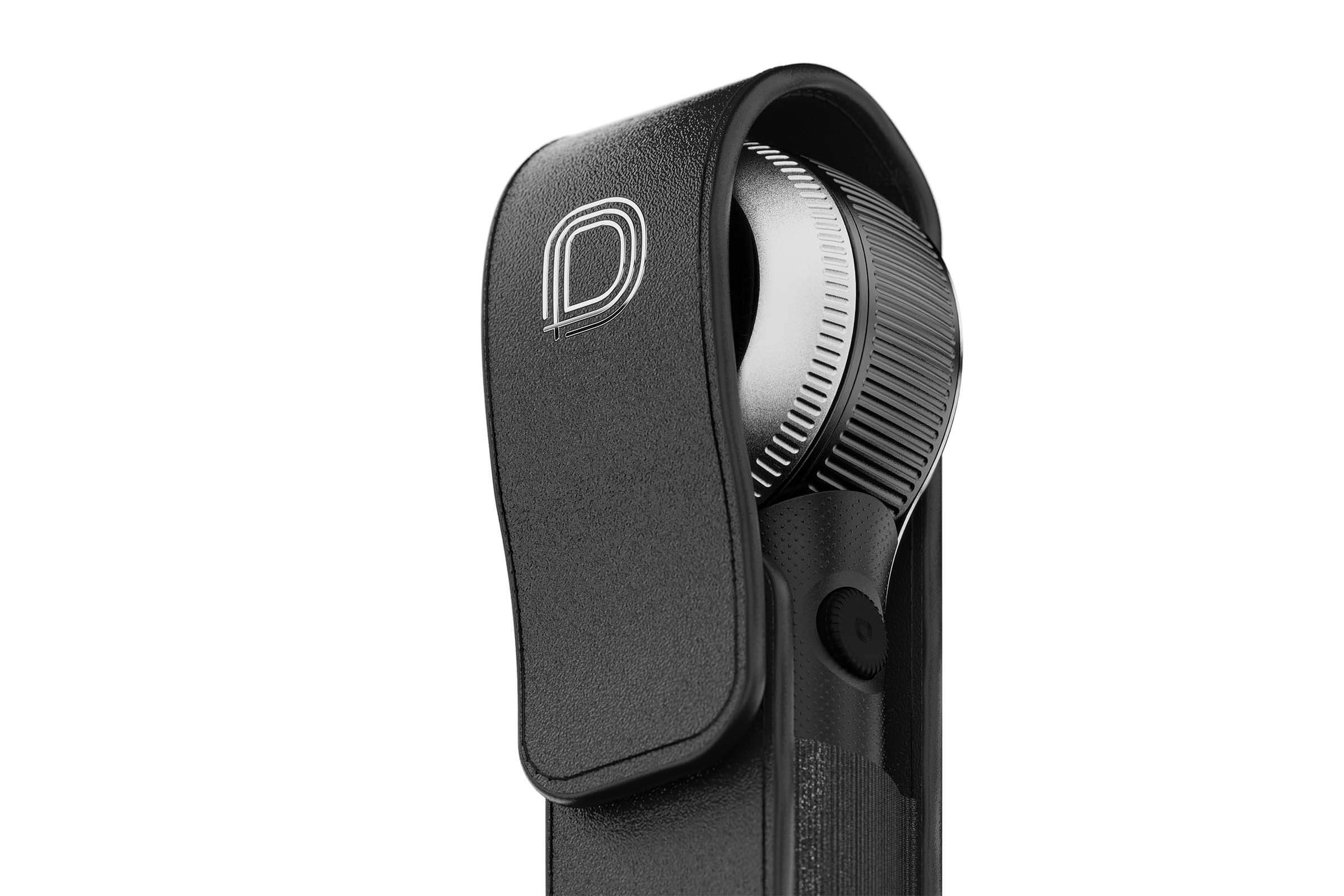

Leather Belt Pouch
2m USB-A to USB-C Cable
Microfibre Cleaning Cloth
Lithium-ion rechargeable battery
Can be attached to smartphone, tablet or camera using step-down rings
5 years warranty

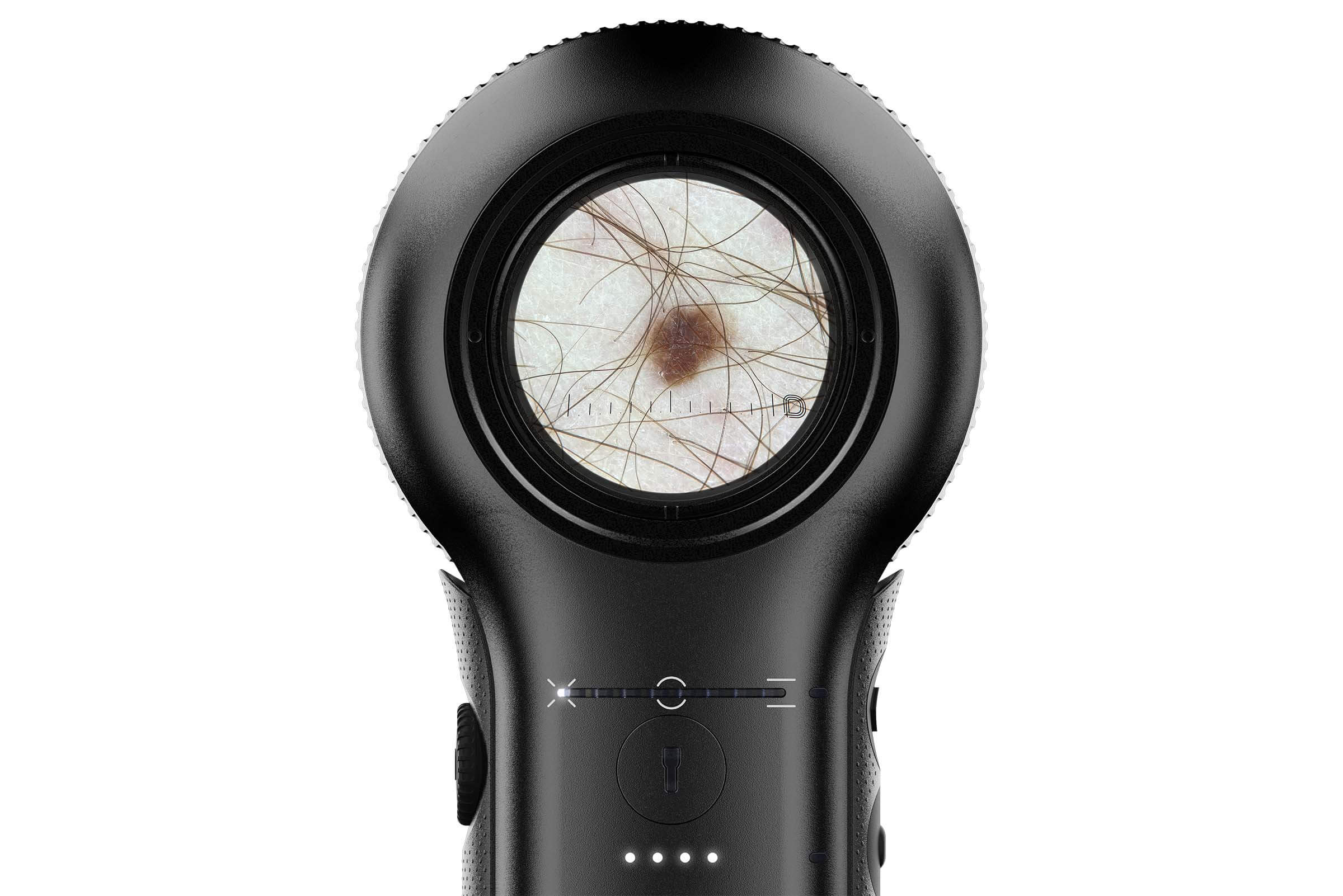

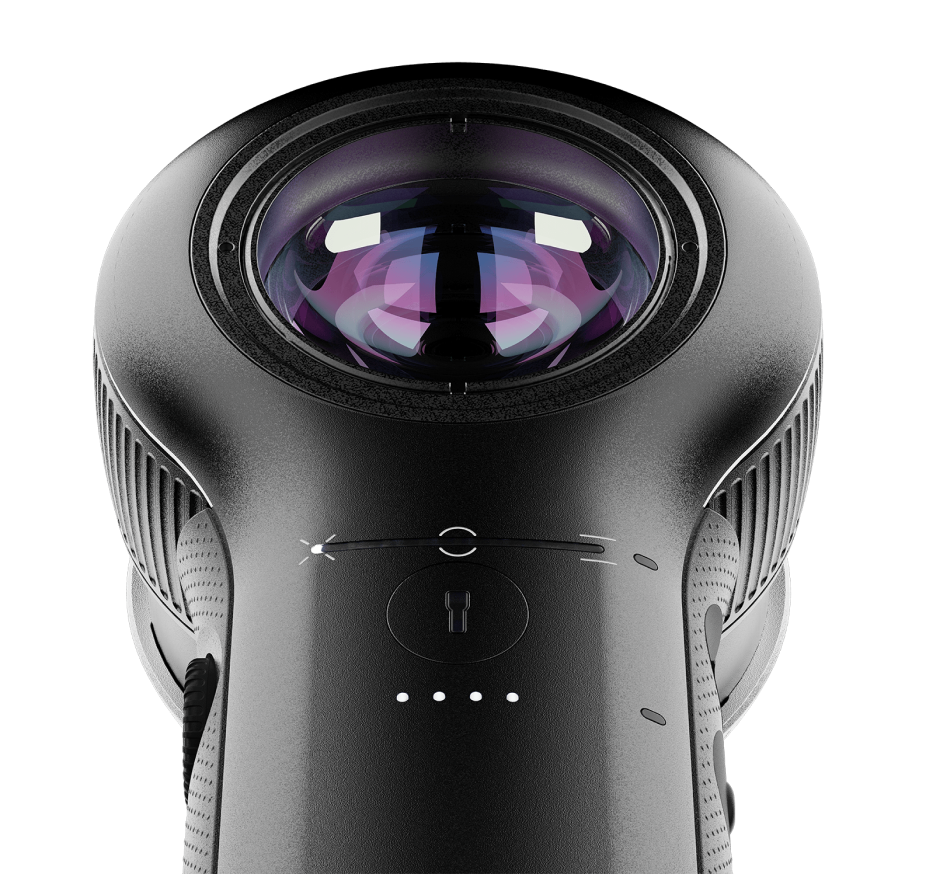

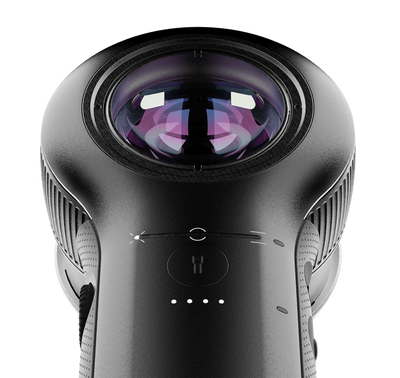

Not only can you toggle between polarised and non-polarised modes, now you're able to visualise extremely superficial structures under parallel polarisation and, as you turn DL5's dial, scroll through the entire polarisation range in order to optically explore a lesion’s visual depths. With available PigmentBoost®, you'll be able to visualise pigmented lesions just as well as you'll see vascular lesions under DermLite's cool colour spectrum. All the while, you’ll love DL5’s optics, which are stunning up-close and outstanding at a distance: Its 32mm lens system with true 10x magnification reveals the super-tiniest of details — better than ever before.
The DermLite DL5 is the world’s first hybrid dermatoscope with 365nm UV, allowing you to spot a host of fluorescing structures — at full 10x magnification. And, when you're quickly screening your patients' skin, DL5’s high-powered torch LED provides phenomenal illumination to larger areas or hard-to-reach spots. Need to measure a lesion? DL5 comes with an on-board, magnetically attached 100mm ruler. Simply slide it off and its semi-circular markings make it easier than ever to assess a lesion or choose the proper biopsy punch.

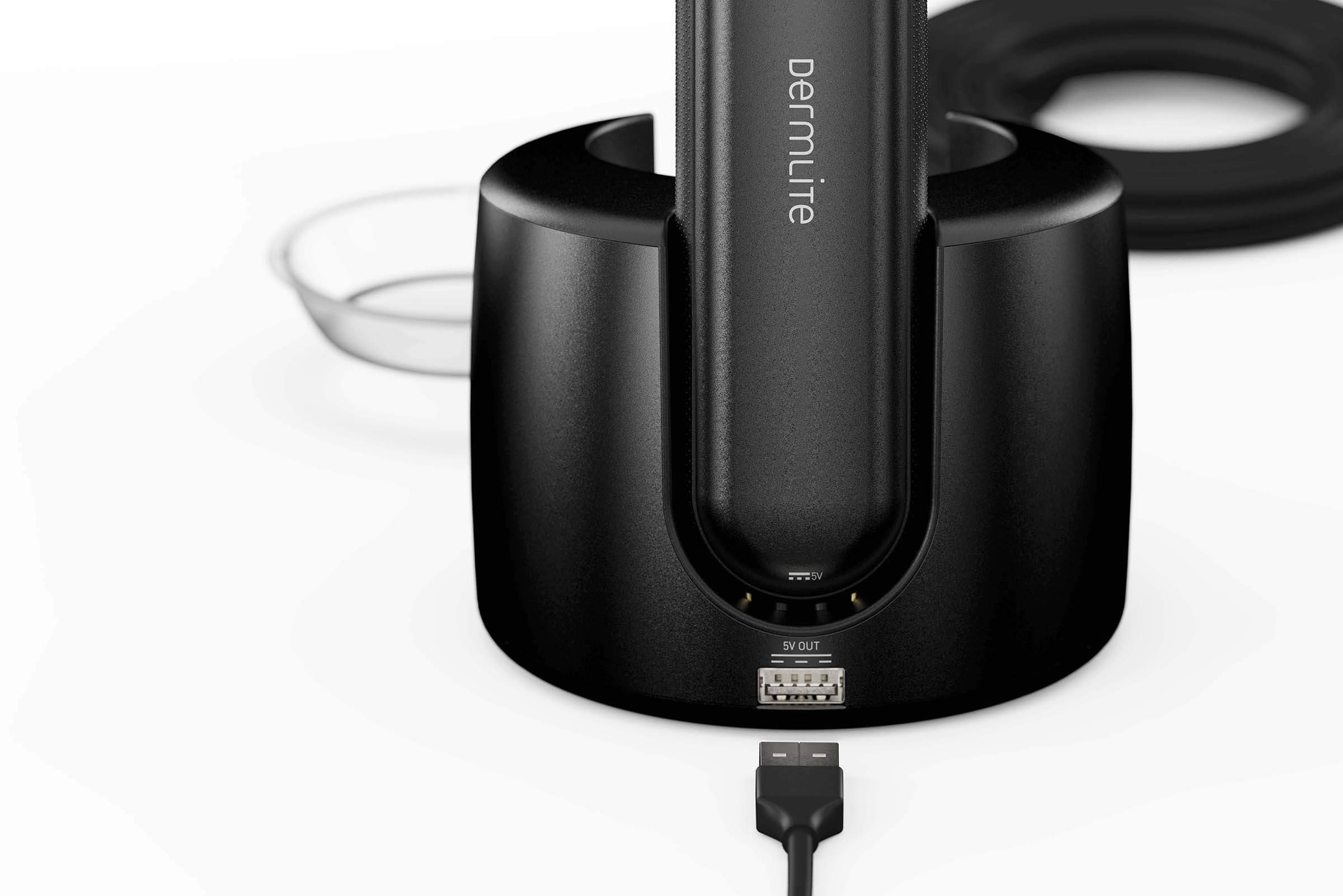

DL5 lets you work substantially longer on a single charge, thanks to a battery that’s more than twice the capacity of DL4. Between uses, keep it charged up on the included desktop charging base — which doubles as home base for your IceCap® supply. You’ll even be able to charge a second DermLite or your phone using its front-facing 5V USB port or use the supplied USB-C cable while on the go; regardless, DL5’s 4-level charge indicator keeps you up to date.

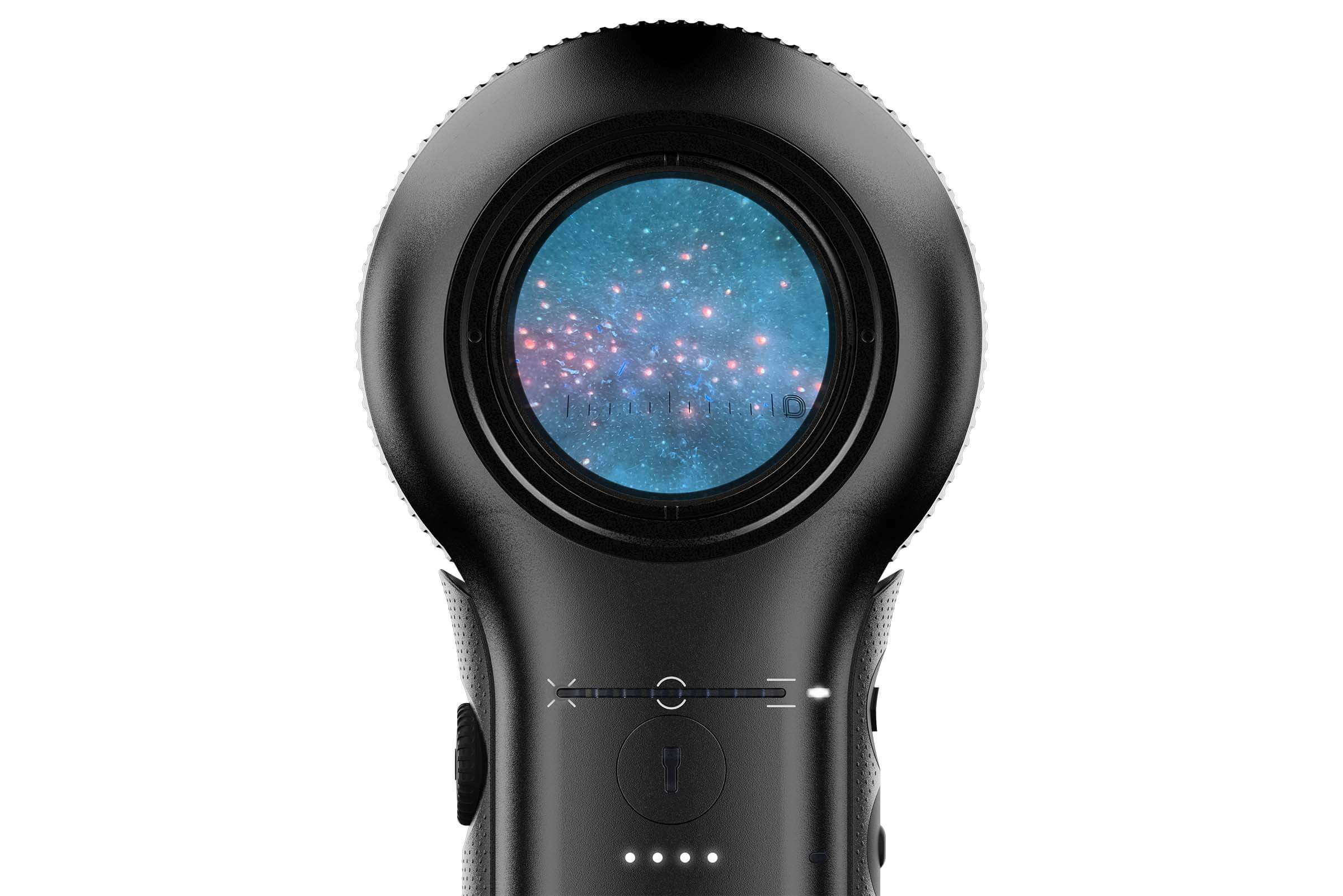

With 365nm UV in your pocket at 10x, DL5 brings you Wood-mode superpowers of a new dimension. See fluorescing features like never before — assess the efficacy of acne treatment, discover exciting presentations of pigmented, vascular or inflammatory lesions, or visualise bacterial and fungal infections on skin, nail, or mucosa.
